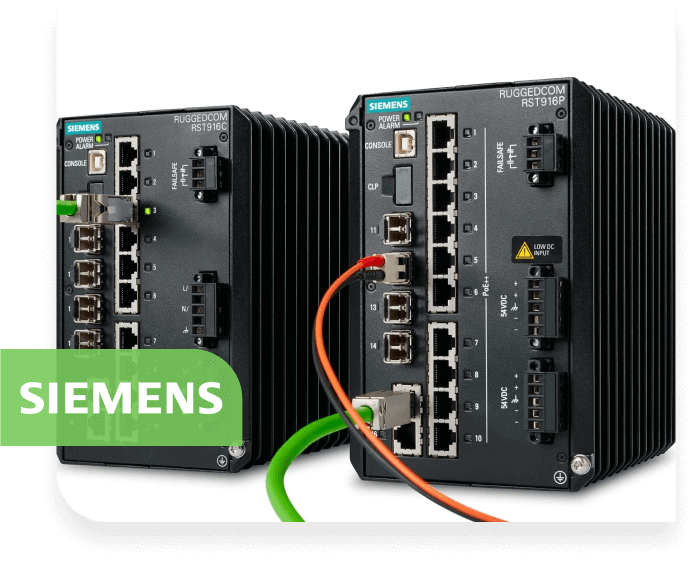

RST916P & RST916C
High Port Density 10 Gigabit Switches
Layer 2 Ethernet switches RUGGEDCOM RST916P and RST916C are designed to provide reliable connectivity for high bandwidth applications in Electric power, Transportation, Oil & Gas and other critical infrastructure industries. Use the Selector to configure and buy the right product for your needs.
Industry Leading
Power-over-Ethernet (PoE) Capability
A single RUGGEDCOM RST916P compact switch packs enough features to power all your end-devices and makes for a truly future-proof PoE networking solution. It delivers IEEE 802.3bt compliant Power-over-Ethernet with up to 60 W power per port. It can support a total PoE power budget of up to 420 W across 10 PoE ports, without the need for separate extenders or modules – placing it in a league of its own in the industry. Power up the OT edge with the RUGGEDCOM RST916P and the rugged Power-over-Ethernet power supply, the RUGGEDCOM RPS2410.
Building on the Red Dot
Space-Saving and Robust Industrial Design
Award-winning design of the RSG900C series of switches, the RUGGEDCOM RST916P and RST916C further enhance the user experience with functional features such as all front-facing ports and connectors, including the USB console and CLP for configuration. These switches are DIN-rail mountable and ideal for space constrained cabinets due to their compact form factor. This reduces in-field installation time while also simplifying configuration and maintenance.

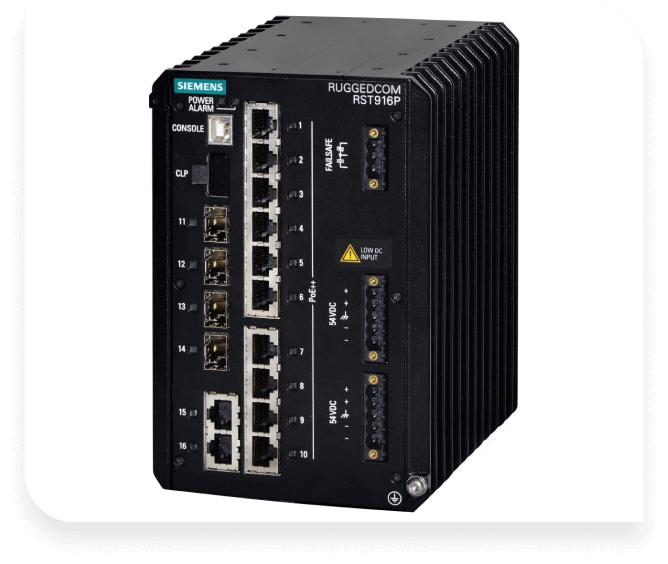

Power-over-Ethernet (PoE) Layer 2 switch is ideal for powering PoE end-devices in space-constrained roadside and wayside cabinets in Intelligent Transportation Systems and Rail networks. The RST916P is tested and certified to the European EN-50155, EN-50121 and the NEMA TS2 Transportation standards, ensuring reliable connectivity even in harsh environmental conditions. With 10 Gbit/s uplinks and long-haul fibre optics with Gigabit bandwidth for up to 115km, it is a future-proof connectivity solution for rapidly evolving complex Transportation and physical security applications.
Power-over-Ethernet (PoE)
- Data and power over a single Ethernet cable
- 10 x 10/100/1000BASE-T 802.3at/802.3bt - compliant ports
- Maximum PoE power budget of 420 W, up to 60 W power output per port

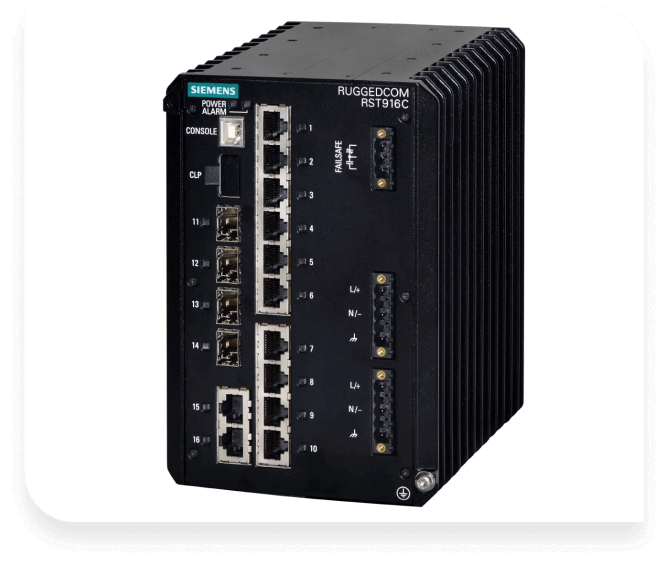

The RUGGEDCOM RST916C switch is well-suited for space-constrained cabinets, such as those used in Electric Power substations and Intelligent Transportation Systems. This compact layer 2 switch features multiple high voltage (HI) and low Voltage (LO) integrated power supply options, Gigabit Ethernet and IEEE1588 v2 Precision Time Protocol support
Products at a Glance
| RUGGEDCOM RST916P | RUGGEDCOM RST916C | |
|---|---|---|
| Maximum Number of Ports | 16 | 16 |
| Maximum Number of Gigabit / 10 Gigabit Ports | 16 x Gigabit ports / 4 x 10 Gigabit ports | 16 x Gigabit ports / 4 x 10 Gigabit ports |
| Interface Speeds | 4 x 10G BASE-X/ 1000BASE-X SFP+12 x 10/100/1000BASE-T RJ45 | 4 x 10G BASE-X/ 1000BASE-X SFP+12 x 10/100/1000BASE-T RJ45 |
| Maximum Number of PoE Ports | 10 | - |
| Redundant Input Power | 54 VDC | LO: 12/24/48 (10-60) VDCHI: 88-300 VDC / 85-264 VAC |
| Power-over-Ethernet (PoE) Support | Yes | - |
| IEEE1588 v2 (Transparent Clock) Support | Yes | Yes |
| Operating Temperature Range | –40°C to +85°C | –40°C to +85°C |
| Datasheet | RUGGEDCOM RST916P | RUGGEDCOM RST916P |
| Industry Mall | Ordering data | Ordering data |
Performance in a Compact Solution
- High port density, high PoE power budget and high bandwidth in an extremely compact form factor, certified for operation in harsh environments of electric power, transportation and oil & gas industries
- Full Gigabit Ethernet switch with 10G uplinks ensures maximum Return on Investment (RoI)
- Workhorse for PoE applications in OT networks with up to 420 W power budget across 10 x PoE ports delivering up to 60 W per port
- Redundant input power rated to operate in an extended temperature range ensures uninterrupted function
- Easy to commission, configure and update firmware in the field with the USB port and the CLP
More Power, Enhanced Performance, Lower Cost
The RUGGEDCOM RST916P and RST916C switches offer a cost-efficient and high-performance connectivity solution for industries embracing rapid digitalization of their industrial networks. Explore the various applications that will benefit from this powerful duo.
Electric Power
Distributed automation, Distributed generation
Low Voltage and Medium Voltage substation automation
- Wind
- Solar
Low Voltage and Medium Voltage substation automation
Transportation
ITS: Freeway traffic management, smart intersection
Rail: Connectivity solutions for platforms, wayside equipment, and rail yards
Shipyards and ports
Rail: Connectivity solutions for platforms, wayside equipment, and rail yards
Shipyards and ports
Physical Security
Security for critical infrastructure
Oil & Gas applications (monitoring and surveillance)
Upstream, midstream and downstream
Oil & Gas applications (monitoring and surveillance)
Upstream, midstream and downstream
Industrial Automation
Water & Wastewater control systems
Automation & SCADA systems
Automation & SCADA systems
Technology that Meets Industry Requirements
RUGGEDCOM solutions are built tough – delivering error-free communications under high levels of electromagnetic interference in extreme temperatures and over long distances. See how RUGGEDCOM solutions have been put to the test. Discover special features, examples of international standards compliance, and more.
